PolyStout1
Polyamide 12 (PA12) Gas Pipe for Increased Pressure Applications
Features
PolyPipe’s POLYSTOUT1™ PA12 Gas Pipe is manufactured from Evonik’s Vestamid® NRG 2101 YE polyamide resin
Manufactured in accordance with ASTM F2785
Meets the short & long term property requirements of a PA42316 resin class per ASTM D6779 & D2837
For increased pressure applications up to 250 psi design pressure and 180°F upper temperature limit
6” OD and less have been adopted by PHMSA and are included in the Code of Federal Regulation
BARCODE printline per ASTM F2897 for DIMP compliance and in accordance with 49 CFR Part 192 (Amdt. 192-124)
Specs

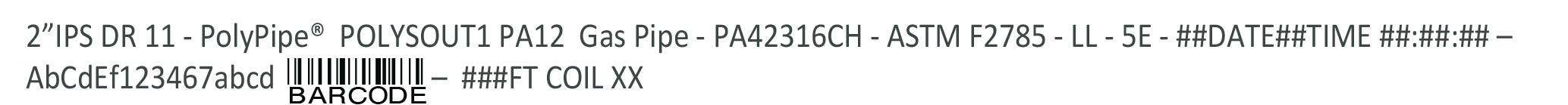

Sample Printline
Application
Natural Gas Distribution, Oil & Gas, Steel Pipe Replacement
Size Range
1/2” - 8” IPS. Contact PolyPipe for addional sizes.
Color/Stripe
Solid Yellow

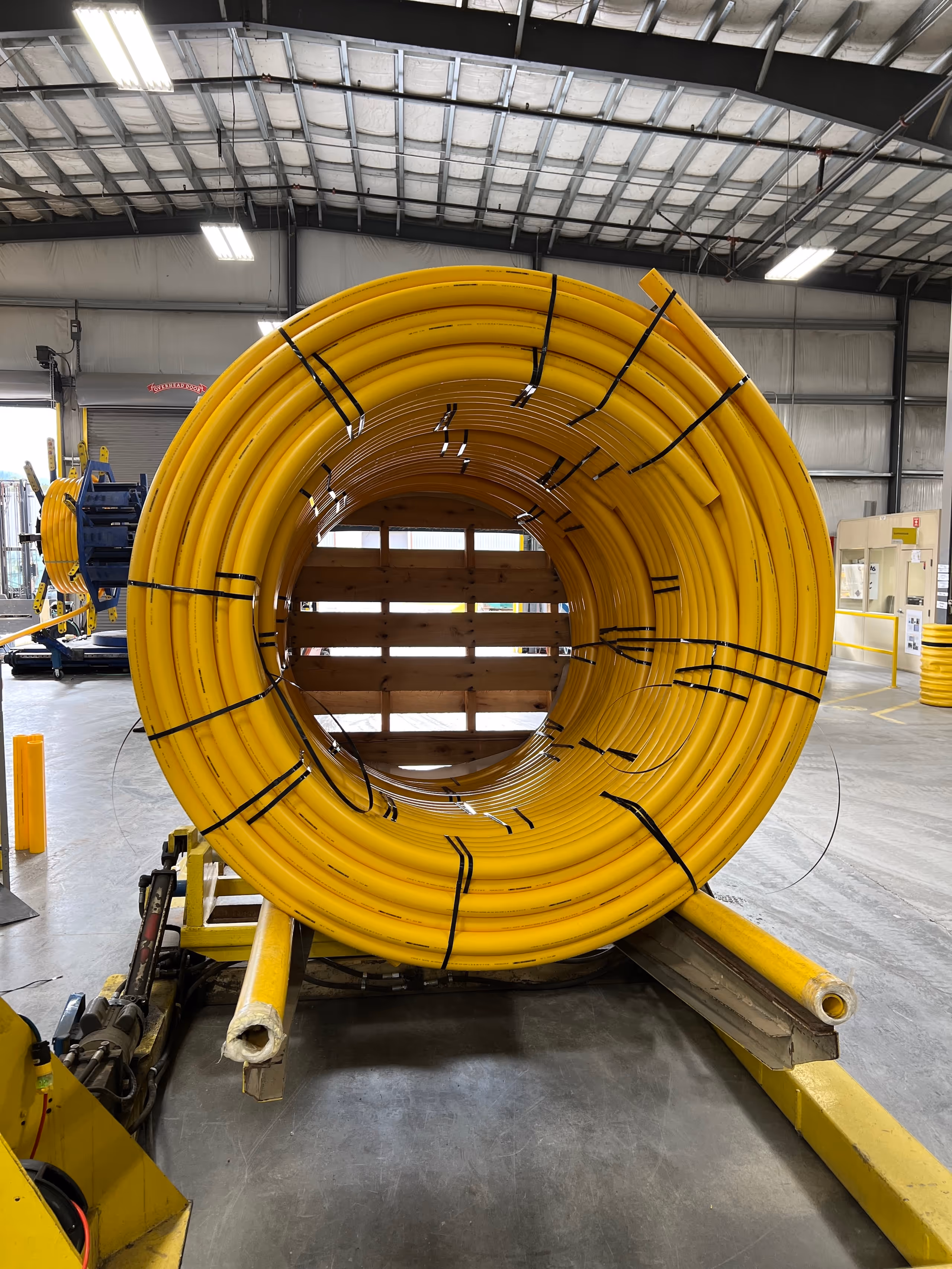

POLYSTOUT1™ PA12 Gas Pipe is an innovative piping alternative to steel pipe infrastructure allowing for increased operating pressures, enhanced corrosion resistance, no cathodic protection costs, butt fusion & electrofusion compatible, can be coiled in 500’ lengths, HDD installed, and squeezed-off using traditional tools.
POLYSTOUT1™ PA12 Gas Pipe is manufactured using a premium grade polyamide resin that allows for higher operating pressures, increased durability, and increased temperature usage limits.
