NGD HDPE
Similar to MDPE pipe, the enhanced mechanical properties created through bimodal resin technology are exhibited even further in the higher performing 4710 resins that are used to manufacture HDPE PolyPipe® GDB50 Gas Pipe. HDPE offers a higher hydrostatic design basis that permits high flow rates, incremental pressure ratings, and higher tensile strength without sacrificing the conveniences of MDPE’s flexibility and ease of fusion.
Features
POLYPIPE GDB50 GAS (PE4710) pipe is manufactured from Dow® Continuum™ DGDA 2490 bimodal resin
BARCODE printline per ASTM F2897 for DIMP compliance and in accordance with 49 CFR Part 192 (Amdt. 192-124)24
Outstanding resistance to Slow Crack Growth (SCG) and Rapid Crack Propagation (RCP)
High Performance Resin for Demanding Applications
Manufactured in accordance with ASTM D2513
Meets ASTM D3350 cell classification PE445574C
Material grades PE4710/PE100 per PPI TR-4
Industry leader in adoption of rework-free (7/2012)
Specs

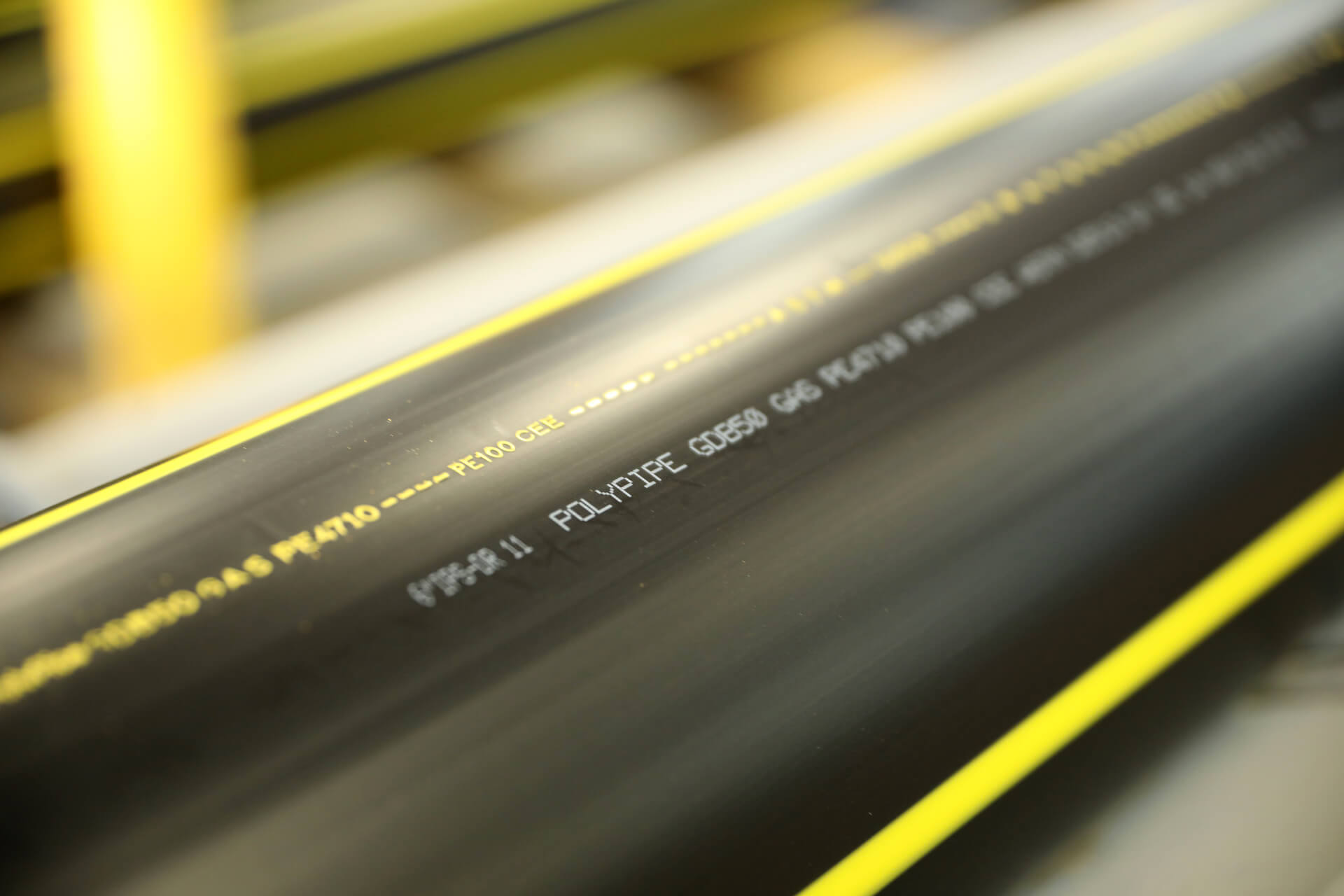

Sample Printline
4”IPS DR11-POLYPIPE® GDB50 GAS-PE4710 PE 100 -CEE-ASTMD2513-D##Y##NR-3EA–22JAN19 –COILXX###FT
Application
Natural Gas Distribution
Size Range
1/2” - 1-1/4” CTS & 1/2” - 16” IPS. Additional sizes available.
Color/Stripe
Black or Black with Yellow Stripe
PolyPipe® GDB50 is manufactured with high performance resins engineered with outstanding resistance to Slow Crack Growth (SCG) and Rapid Crack Propagation (RCP). These unique properties bring outstanding integrity for gas distribution systems. PolyPipe is ISO 9001 certified and PolyPipe® is qualified using exacting laboratory procedures and test methods, and a consistent uncompromising quest for design and manufacturing excellence.
MDPE pipe, the enhanced mechanical properties created through bimodal resin technology are exhibited even further in the higher performing 4710 resins that are used to manufacture HDPE PolyPipe® GDB50 Gas Pipe. HDPE pipe offers increased performance as it maintains a higher Hydrostatic Design Basis (HDB) allowing for higher flow rates, thinner walled pipe, increased pressure ratings, and higher tensile strength without sacrificing the conveniences of MDPE’s flexibility and ease of fusion. Make the most reliable choice for your natural gas distribution network and install HDPE PolyPipe® GDB50 Gas Pipe today!
