PolyBrute1
Redefining the capabilities of plastic pipe
Features
PA12 line pipe is well suited for a multitude of oilfield applications including high operating pressures, multiphase crude fluids and gas transport, gas gathering, & produced water & brine handling
PolyPipe® PA12 Gas Pipe is manufactured from Evonik’s Vestamid® NRG 5901 BK polyamide resin
Manufactured in accordance with ASTM F3524
Brine & hydrocarbon resistant. No pressure derating required.•
BARCODE printline per ASTM F2897 for maximum tracking and traceability
Meets the short & long term property requirements of a PA42316 resin class per ASTMD6779 & D2837
For high pressure applications of 250 psi or greater depending on design factor usedwith a 180F upper temperature limit
Specs

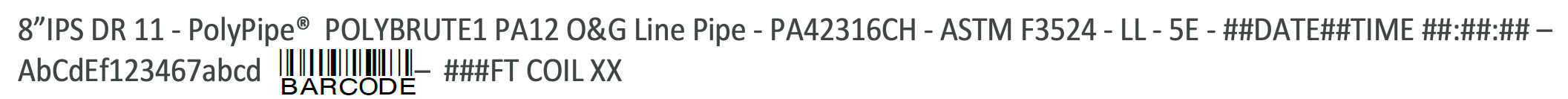

Sample Printline
Application
High Pressure, Gas Gathering, Produced Water & Brine Transport, & Steel Pipe Alternative
Size Range
2” - 16” IPS. Contact PolyPipe for addional sizes
Color/Stripe
Solid Black
PolyPipe® PA12 Oil & Gas Line Pipe is an innovative piping solution for oil and gas applications. Benefits of polyamide pipe include higher operating pressures, enhanced corrosion resistance, no cathodic protection costs, butt fusion & electrofusion compatible, can be coiled in 250’ or 500’ lengths, HDD installed, and squeezed-off using traditional tools.
PolyPipe® POLYBRUTE1™ O&G Line Pipe is manufactured using a premium grade polyamide resin that allows for higher operating pressures, increased durability, and increased temperature usage limits.
